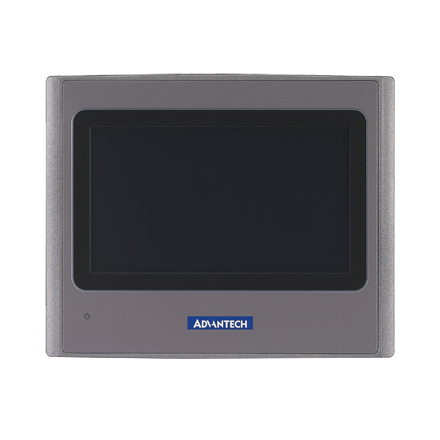

WebOP-2040T
4.3"WQVGA工業級可編程人機界面，支持研華WebOP Designer組態軟件
Main Features
  • 多尺寸LCD （4.3"到15")
  • 支持RTC, RAM 電池備份以及基于以太網操作面板
  • 可通過串口、以太網、USB下載運行數據
  • 觸摸屏支持可調節亮度控制
  • 可靠的24/7操作固件
  • 支持Windows XP/基于Vista 的WebOP Designer 開發工具
  • 便于應用程序快速切換至不同尺寸LCD
  • 支持水平和垂直顯示
  • 支持300多種PLC 工業通訊協議
  • 可與4種設備輕松相連
  • 支持面板安裝
  • 前面板符合NEMA4/IP66標準
  規格表
　
WOP-2040T-N1AE
WOP-2040T-S1AE
Display Size 4.3" 4.3"
Max. Resolution 480 x 272 480 x 272
General Power Consumption 5 W 5 W
Power Input 24VDC ±10% 24VDC ±10%
Mounting Panel Mount Panel Mount
Certifications CE, BSMI, CCC, UL, FCC Class A CE, BSMI, CCC, UL, FCC Class A
Dimensions 130 x 106.2 x 36.4mm (5.11" x 4.18" x 1.43") 130 x 106.2 x 36.4mm (5.11" x 4.18" x 1.43")
Cooling System Fanless design Fanless design
Enclosure Housing PC/ABS PC/ABS
OS Support HMI RTOS, WebOP Designer HMI RTOS, WebOP Designer
Weight (Net) 0.3 kg (0.66 lbs) 0.3 kg (0.66 lbs)
System Hardware CPU RISC 32 bits, 200MHz RISC 32 bits, 200MHz
Memory 32 MB SDRAM 32 MB SDRAM
Storage 8MB NOR Flash & 128M NAND Flash 8MB NOR Flash

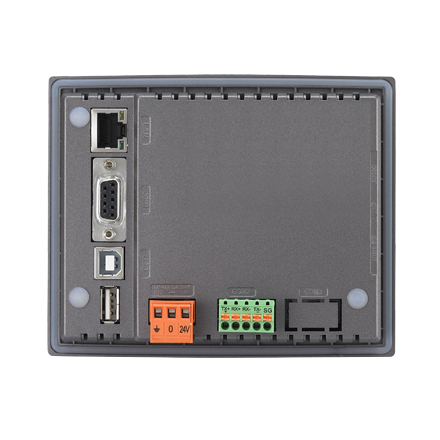

I/O COM1: RS232/422/485 (DB9 Femail) COM2: RS422/485 (Terminal 5pin) COM3: RS232 COM1: RS232/422/485 (DB9 Femail) COM2: RS422/485 (Terminal 5pin) COM3: RS232
LAN 10/100Base-T x 1 　
Battery Backup Memory 128KB 128KB
LCD Display Viewing Angle (H/V°) 100/95 100/95
Luminance (cd/m2) 400 400
Backlight Life LED, 20,000 LED, 20,000
Max. Colors 65,536 colors 65,536 colors
Display Type WQVGA(16:9) TFT LCD WQVGA(16:9) TFT LCD
Environment Temperature (Operating) 0 ~ 50°C (32 ~ 122° F) 0 ~ 50°C (32 ~ 122° F)
Temperature (Storage) -20 ~ 60°C (-4 ~ 140° F) -20 ~ 60°C (-4 ~ 140° F)
Humidity (Operating) 10 ~ 95% RH @ 40° C, non-condensing 10 ~ 95% RH @ 40° C, non-condensing
Ingress Protection Front panel: IP66 Front panel: IP66
Vibration Protection 1 Grms (5 ~ 500 Hz) 1 Grms (5 ~ 500 Hz)
Touchscreen Lifespan 1 million times with an 8mm diameter finger of silicone rubber 1 million times with an 8mm diameter finger of silicone rubber
Resolution Linearity Linearity
Touch Type 4-wire, analog resistive 4-wire, analog resistive
