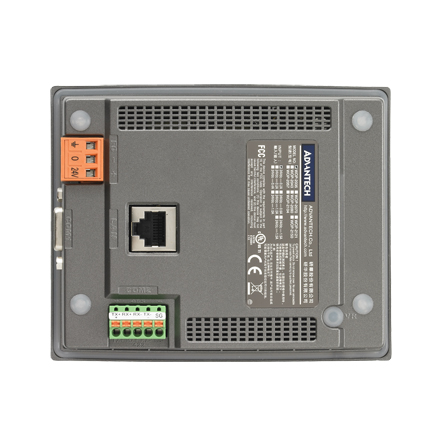

| WebOP-2035V |
| 3.5" QVGA工業(yè)級可編程人機界面，支持研華WebOP Designer 2.0組態(tài)軟件 |
| |
|
WOP-2035V-N1AE |
WOP-2035V-S1AE |
| Display |
Size |
3.5" |
3.5" |
| Max. Resolution |
320 x 240 |
320 x 240 |
| General |
Power Consumption |
10 W |
10 W |
| Power Input |
24VDC ±10% |
24VDC ±10% |
| Mounting |
Panel Mount |
Panel Mount |
| Certifications |
CE, BSMI, CCC, UL, FCC Class A |
CE, BSMI, CCC, UL, FCC Class A |
| Dimensions |
130 x 106.2 x 45 mm (5.11" x 4.18" x 1.77") |
130 x 106.2 x 45 mm (5.11" x 4.18" x 1.77") |
| Cooling System |
Fanless design |
Fanless design |
| Enclosure Housing |
PC/ABS |
PC/ABS |
| OS Support |
HMI RTOS, WebOP Designer |
HMI RTOS, WebOP Designer |
| Weight (Net) |
0.27 kg (0.59 lbs) |
0.27 kg (0.59 lbs) |
| System Hardware |
CPU |
RISC 32 bits, 70MHz |
RISC 32 bits, 70MHz |
| Memory |
1 MB SDRAM |
1 MB SDRAM |
| Storage |
4MB NOR Flash |
4MB NOR Flash |
| I/O |
COM1: RS232/422/485 (DB9 Femail) COM2: RS422/485 (Terminal 5pin) |
COM1: RS232/422/485 (DB9 Femail) COM2: RS422/485 (Terminal 5pin) |
| LAN |
10/100Base-T x 1 |
|
| Battery Backup Memory |
128KB |
128KB |
| LCD Display |
Viewing Angle (H/V°) |
120/110 |
120/110 |
| Luminance (cd/m2) |
350 |
350 |
| Backlight Life |
LED, 20,000 |
LED, 20,000 |
| Max. Colors |
256 colors |
256 colors |
| Display Type |
QVGA TFT LCD |
QVGA TFT LCD |
| Environment |
Temperature (Operating) |
0 ~ 50°C (32 ~ 122° F) |
0 ~ 50°C (32 ~ 122° F) |
| Temperature (Storage) |
-20 ~ 60°C (-4 ~ 140° F) |
-20 ~ 60°C (-4 ~ 140° F) |
| Humidity (Operating) |
10 ~ 95% RH @ 40° C, non-condensing |
10 ~ 95% RH @ 40° C, non-condensing |
| Ingress Protection |
Front panel: IP65 |
Front panel: IP65 |
| Vibration Protection |
1 Grms (5 ~ 500 Hz) |
1 Grms (5 ~ 500 Hz) |
| Touchscreen |
Lifespan |
1 million times with an 8mm diameter finger of silicone rubber |
1 million times with an 8mm diameter finger of silicone rubber |
| Resolution |
Linearity |
Linearity |
| Touch Type |
4-wire, analog resistive |
4-wire, analog resistive |
|
