Advantech WebAccess
基于瀏覽器的HMI/SCADA 軟件

Main Features

  • 首家完全基于瀏覽器而設計的網際組態軟件
  • 基于web瀏覽器的全功能客戶端監控與現場同步
  • 強大的遠程診斷，維護功能
  • 中央集成數據庫服務器
  • 分布式結構體系
  • 全局節點的時間同步功能
  • 多疊式網絡安全體系
  • 免費的客戶端授權
  • 免費的開發環境，一次擁有，無限開發
  • 與上層管理系統的無縫接軌，輕松實現管控一體化
  • Email方式發送報警信息與報表
        數據表(PDF)    技術資料下載
  規格表
　 　 WA-P80-U075E WA-P80-U150E WA-P80-U15HE WA-P80-U20KE WA-P80-U300E WA-P80-U50HE WA-P80-U600E WA-P80-U64KE

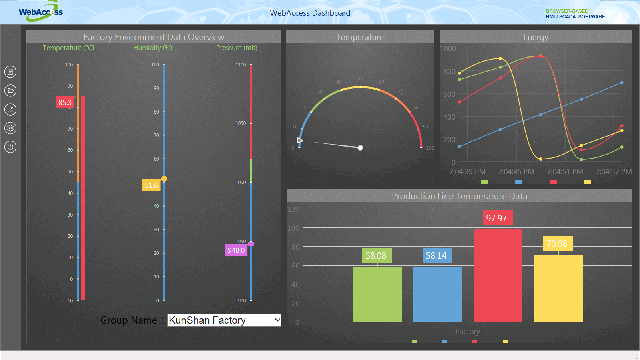

Dashboard Cross Browser and Platform Yes Yes Yes Yes Yes Yes Yes Yes
Number of Built-in Widget 37 37 37 37 37 37 37 37
Open Widget Interface Yes Yes Yes Yes Yes Yes Yes Yes
Web-enabled Integration Google Maps and GPS Location Tracking Yes Yes Yes Yes Yes Yes Yes Yes
Advantech WebAccess Professional I/O Tag Number 75 150 1500 20000 300 5000 600 Unlimited
Internal Tag Number 75 150 1500 20000 300 5000 600 Unlimited
Web Client 1024 1024 1024 1024 1024 1024 1024 1024
Alarm Logs 5000 5000 5000 5000 5000 5000 5000 5000
Action Logs 5000 5000 5000 5000 5000 5000 5000 5000
Graphics Number of Graphic Pages Unlimited Unlimited Unlimited Unlimited Unlimited Unlimited Unlimited Unlimited
Variables per Graphic Pages 4000 4000 4000 4000 4000 4000 4000 4000
Tag Source Global Global Global Global Global Global Global Global
Multi-touch Gesture Yes Yes Yes Yes Yes Yes Yes Yes
Group Trend Log Number of data logging Number of IO tags license x 2 Number of IO tags license x 2 Number of IO tags license x 2 Number of IO tags license x 2 Number of IO tags license x 2 Number of IO tags license x 2 Number of IO tags license x 2 Number of IO tags license x 2
Alarm Groups per SCADA 9999 9999 9999 9999 9999 9999 9999 9999
Receipt Recipes per Project Unlimited Unlimited Unlimited Unlimited Unlimited Unlimited Unlimited Unlimited
Unit per Recipe 999 999 999 999 999 999 999 999
Item per Unit 999 999 999 999 999 999 999 999
Scheduler Holiday Configuration Group 9999 9999 9999 9999 9999 9999 9999 9999
Time Zone Group 9999 9999 9999 9999 9999 9999 9999 9999
Device Loop Group 9999 9999 9999 9999 9999 9999 9999 9999
Equipment Group 9999 9999 9999 9999 9999 9999 9999 9999
Scheduler Reservation Group 9999 9999 9999 9999 9999 9999 9999 9999
Open Connectivity Modbus Server Yes Yes Yes Yes Yes Yes Yes Yes
BACnet Server Yes Yes Yes Yes Yes Yes Yes Yes
ODBC and SQL Query Yes Yes Yes Yes Yes Yes Yes Yes
OPC DA/UA Server Yes Yes Yes Yes Yes Yes Yes Yes
DDE Server Yes Yes Yes Yes Yes Yes Yes Yes
Others Centralized logs on project node via ODBC Yes node via ODBC Yes node via ODBC Yes node via ODBC Yes node via ODBC Yes node via ODBC Yes node via ODBC Yes node via ODBC Yes node via ODBC
SCADA Redundancy Yes Yes Yes Yes Yes Yes Yes Yes
Script language TclScript
/VBScript
/JScript		 TclScript
/VBScript
/JScript		 TclScript
/VBScript
/JScript		 TclScript
/VBScript
/JScript		 TclScript
/VBScript
/JScript		 TclScript
/VBScript
/JScript		 TclScript
/VBScript
/JScript		 TclScript
/VBScript
/JScript
Data Transfer Yes Yes Yes Yes Yes Yes Yes Yes

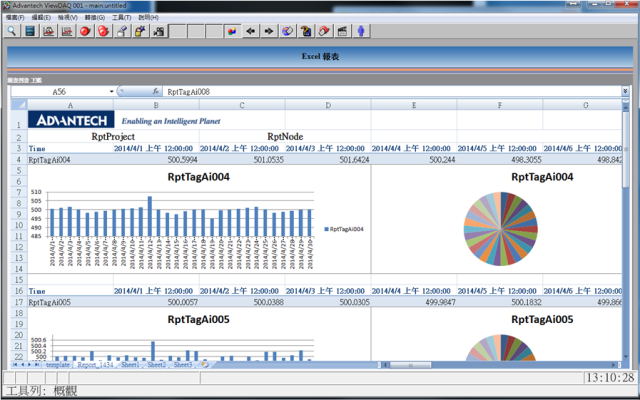

Reporting / Excel Reporting Yes Yes Yes Yes Yes Yes Yes Yes
Device Redundancy Yes Yes Yes Yes Yes Yes Yes Yes
Support IPv6 Yes Yes Yes Yes Yes Yes Yes Yes
WebAccess Express Yes Yes Yes Yes Yes Yes Yes Yes
Web-enabled Integration Video Yes Yes Yes Yes Yes 　 　 　
