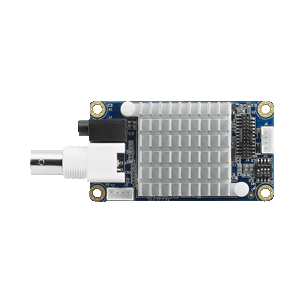

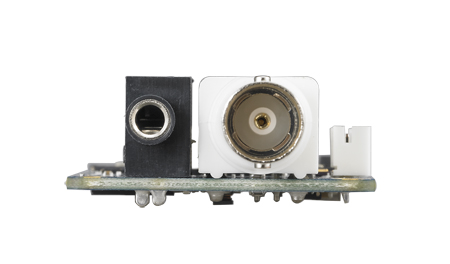

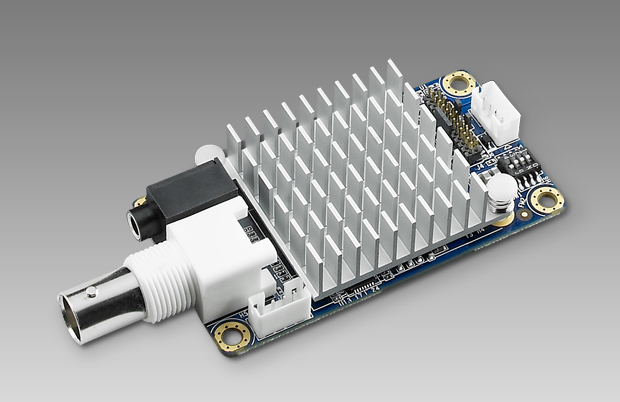

DSP-8601
1-ch H.264 USB Video Capture Module with SDK
Main Features
  • Powered by TI TMS320DM365 SoC
  • 1-channel composite video input with H.264 hardware compression
  • Supports PCM/G.711 hardware audio compression
  • 30/25 fps (NTSC/PAL) at full D1 resolution for recording
  • High-speed USB 2.0 interface
  • SDK with VC++ sample codes
        數據表(PDF)    技術資料下載
  規格表
DSPC-8601-USBE
Drive Bay Bus USB 2.0
General Description 1-Channel High-Speed USB Video Capture Module with SDK
Video Video Input 1
Resolution (Max.) D1
Display Rate 30/25 fps
(NTSC/PAL)
Video Compression H.264
Audio Audio Input 1
